On this weblog, we’ll introduce and discover the String Reader Device from Matrox Imaging.

What’s Optical Character Recognition (OCR)?

Briefly earlier than we start, let’s recap the subject.

  • OCR is a long-used machine imaginative and prescient expertise that permits machines to recognise numeric and textual content characters from photos. It requires a machine imaginative and prescient digital camera and pc operating picture processing software program.
  • ANPR (Automated Quantity Plate Recognition) was one of many first main OCR tasks developed within the late Seventies for recognising automobile license plates.
  • Concerns for OCR embody points with CIJ printing and font recognition.
  • Conventional OCR strategies contain pre-processing steps, whereas deep studying OCR can excel on the job shortly, nonetheless finally it will likely be sturdy because the knowledge set it’s educated on.
  • Deep studying OCR requires a sturdy coaching set and handles completely different font varieties.
  • Client OCR software program on smartphones is not appropriate for industrial environments.
  • Industrial OCR techniques are sturdy, suited to industrial settings, and may course of massive volumes of knowledge shortly.


Selecting the Proper Software program Instruments for OCR

In numerous machine imaginative and prescient subjects, we prefer to discern between doing issues the ‘DIY’ manner, and doing them the ‘packaged’ manner, typically through the use of all-in-one techniques to boost the method of organising your imaginative and prescient software. For instance, in our weblog on 3D profiling, we focus on the chances of organising and calibrating your individual system utilizing particular person cameras, versus buying a packaged 3D profiling digital camera. The rationale we like to do that is that each strategies are often price speaking about, as there are professionals and cons that include both determination.

OCR, nonetheless, is just a little completely different. As we lined final time, it’s a lengthy and storied expertise inside machine imaginative and prescient, and so it doesn’t actually make sense to speak about choosing the standard route. Right here’s why.

Why conventional OCR isn’t price it anymore

On the flip of the century folks had been utilizing among the first industrial picture processing software program instruments for computer systems, and this included OCR. While on the time these programmes represented an unbelievable development in industrial machine imaginative and prescient expertise, wanting again on them from the place we at the moment are paints a unique image.

On this course of, step one was to arrange a brand new font for the system. This meant defining each doable character that the imaginative and prescient system can be imaging, which was often A-Z, a-z, 0-9, and any related punctuation and symbols. A field needed to be drawn round every character, and particular parameters needed to be outlined for the system.

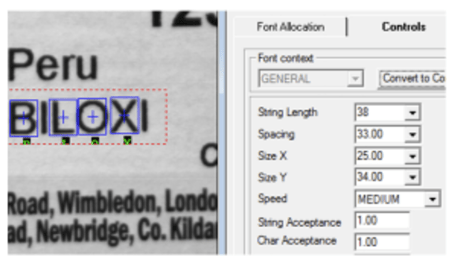

Defining actual parameters for every character.


Even as soon as this painstaking job was accomplished, there have been nonetheless numerous errors and kinks that might have to be ironed out.

Regardless that organising an OCR system from scratch was price it in the long term, it induced a number of complications – and in right this moment’s world, opting to make use of one among these older programmes would significantly delay your mission given the opposite choices on the market.

We expect in right this moment’s world, there are three actually good choices for OCR: String Reader, SureDot, and Deep Studying.

Let’s dive just a little deeper into String Reader.


String Reader

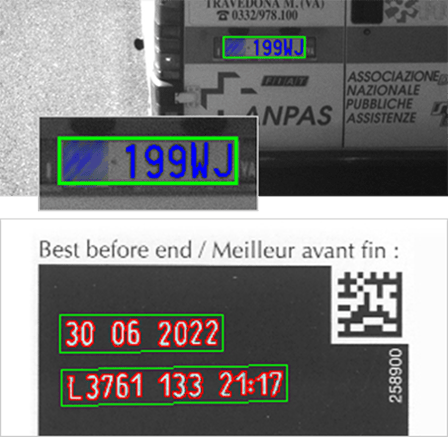

image-png-Jul-03-2023-01-13-16-5366-PMThe String Reader instrument relies on a complicated method that utilises the geometric options of characters to shortly find and learn textual content. It thrives with characters comprised of strong strains in photos the place these characters are effectively separated from the background and from each other. The instrument may deal with textual content strings with a identified or unknown variety of evenly or proportionally spaced characters.

It accommodates adjustments in character angle with respect to the string, side ratio, scale, and skew, in addition to distinction reversal. Strings may be positioned throughout a number of strains and at a slight angle. The instrument reads from a number of pre-defined (TrueType and Postscript) or user-defined Latin-based fonts. Additionally included are ready-made Latin-based unified contexts for automated quantity plate recognition (ANPR) and machine print.

Along with this, strings may be topic to user-defined constraints, total and at particular character positions, to additional enhance recognition charges. The instrument is designed for ease-of-use and contains String Knowledgeable, a utility to assist fine-tune settings and troubleshoot poor outcomes.


Use String Reader

String Reader is obtainable as a instrument inside Matrox Imaging Library (MIL) X and Design Assistant X machine imaginative and prescient software program packages.



MIL X is a complete suite of software program instruments for the event of machine imaginative and prescient, picture evaluation, and medical imaging purposes. It gives a spread of instruments that cowl your complete course of, from assessing software feasibility to prototyping, improvement, and deployment.

It’s a software program improvement equipment (SDK) that provides interactive software program and programming capabilities for picture seize, processing, evaluation, annotation, show, and archiving. These instruments are particularly designed to spice up productiveness, lowering the effort and time required to carry options to market.


Design Assistant X

Matrox Design Assistant X, represents a barely completely different choice: an intuitive, versatile, and extendable built-in improvement setting (IDE) for machine imaginative and prescient purposes. It empowers customers to construct imaginative and prescient purposes by means of an intuitive flowchart interface, eliminating the necessity for typical programming code. Moreover, the IDE permits for the creation of a visually interesting web-based operator interface for the applying.

Each options can be found by means of Clearview! Try our Software program web page for extra info.
